Shop The Best Arched Strip Profile Die Ejection Rubber Directly From Factory

LQ-TOOL Arched strip profile Die ejection rubber

1.Arched rubber strip 2.Special-shaped anti-back pressure rubber strip 3.Air permeable sponge rubber 4.Solid/square rubber strip (for cardboard ) 5.Columnar gap rubber strip(us e d for corrugate cardboard) 6.Corrugated protection strip

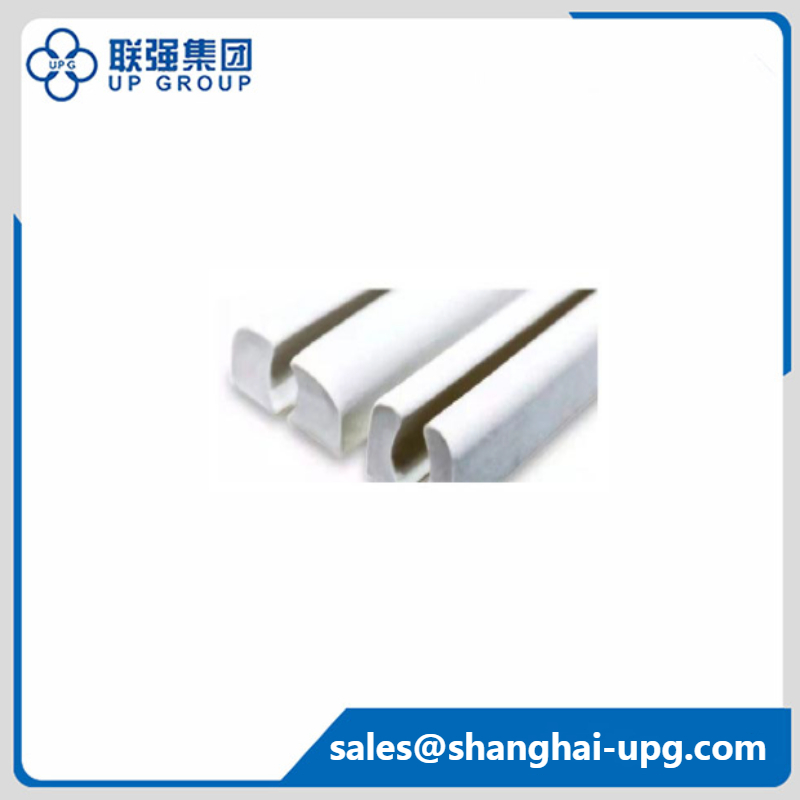

The arched rubber strip is used in the process of printing and die-cutting. It is a white rubber strip that is cushioned between the die-cutting knife lines and rebounds during die-cutting. It is also called explosion-proof rubber strip. It is used on both sides of the steel knife. High hardness, strong air permeability, good resilience, and excellent aging resistance. Effectively buffer the knife line pressure, with a pressure resistance of up to one million times to avoid paper grabs, prevent line bursts, and reduce paper fluffing and other die-cutting problems.

H(mm)	W(mm)	L(mm)	Hardness
7.3	8	700/1000	70℃
7.3/8	5	700/1000	70℃

H(mm)	W(mm)	L(mm)	Hardness
7	4	700	65℃
7	4	700	75℃
7	4	700	95℃

H(mm)	W(mm)	L(mm)	Hardness
7	7	500/1000	35℃/45℃
10	10	500/1000	35℃/45℃

H(mm)	W(mm)	L(mm)	Hardness
7	1、2、3、4、5	500	70℃

H(mm)	W(mm)	L(mm)	Hardness
8	3	285	90℃
8	5	285	90℃
11	3	285	90℃
11	5	285	90℃
11	7	285	90℃

H(mm)	W(mm)	L(mm)	Hardness
7	18	1000	70℃

LQ-TOOL Arched strip profile Die ejection rubber
